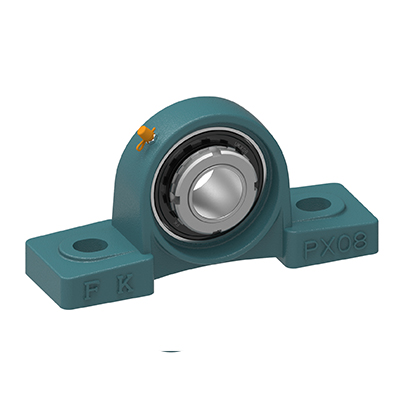

UCPX00

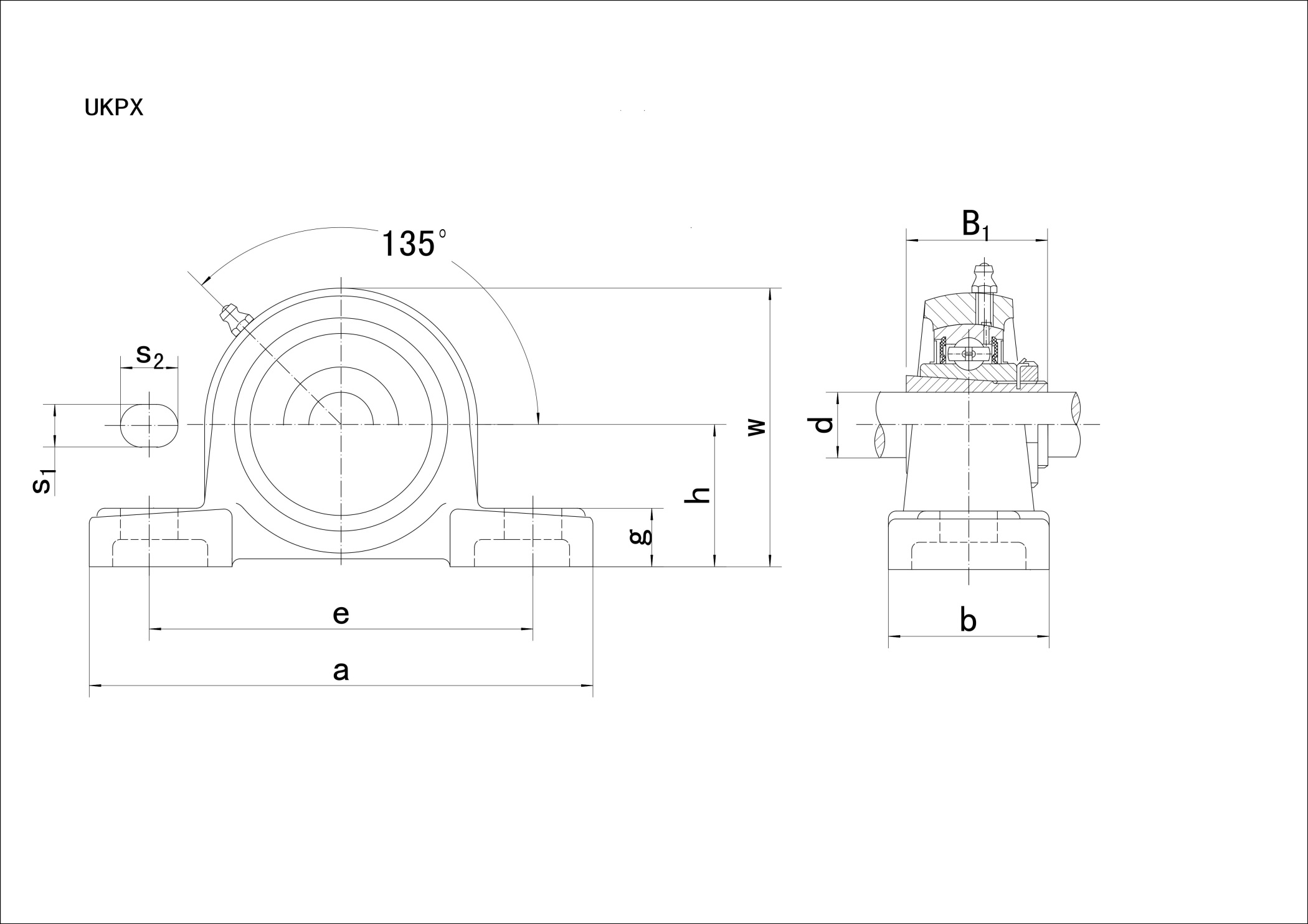

Unit NO.Dimensions ( mm / in. )Bolt Size mm/in.Bearing No.Housing No.Weight (kg)
dhaebs1s2gwB1
UKPX05;H2305 20 44.4 159 119 51 17 20 18 85 35 M14 UKX05;H2305 PX05 1.33
UKPX05;HE2305 3/4 1-3/4 6-1/4 4-11/16 2 43/64 25/32 23/32 3-11/32 1.378 1/2 UKX05;HE2305 PX05 1.33
UKPX06;H2306 25 47.6 175 127 57 17 20 20 93 38 M14 UKX06;H2306 PX06 1.75
UKPX06;HS2306 7/8 1-7/8 6-7/8 5 2-1/4 43/64 25/32 25/32 3-21/32 1.496 1/2 UKX06;HS2306 PX06 1.75
UKPX06;HE2306 1 1-7/8 6-7/8 5 2-1/4 43/64 25/32 25/32 3-21/32 1.496 1/2 UKX06;HE2306 PX06 1.75
UKPX07;H2307 30 54 203 144 57 17 20 21 105 43 M14 UKX07;H2307 PX07 2.33
UKPX07;HS2307 1-1/8 2-1/8 8 5-21/32 2-1/4 43/64 25/32 13/16 4-1/8 1.693 1/2 UKX07;HS2307 PX07 2.33
UKPX08;H2308 35 58.7 222 156 67 20 23 26 111 46 M16 UKX08;H2308 PX08 2.89
UKPX08;HE2308 1-1/4 2-5/16 8-3/4 6-5/32 2-5/8 25/32 29/32 1-1/32 4-3/8 1.811 5/8 UKX08;HE2308 PX08 2.89
UKPX08;HS2308 1-3/8 2-5/16 8-3/4 6-5/32 2-5/8 25/32 29/32 1-1/32 4-3/8 1.811 5/8 UKX08;HS2308 PX08 2.89
UKPX09;H2309 40 58.7 222 156 67 20 23 26 116 50 M16 UKX09;H2309 PX09 3.25
UKPX09;HA2309 1-7/16 2-5/16 8-3/4 6-5/32 2-5/8 25/32 29/32 1-1/32 4-9/16 1.969 5/8 UKX09;HA2309 PX09 3.25
UKPX09;HE2309 1-1/2 2-5/16 8-3/4 6-5/32 2-5/8 25/32 29/32 1-1/32 4-9/16 1.969 5/8 UKX09;HE2309 PX09 3.25
UKPX09;HS2309 1-5/8 2-5/16 8-3/4 6-5/32 2-5/8 25/32 29/32 1-1/32 4-9/16 1.969 5/8 UKX09;HS2309 PX09 3.25
UKPX10;H2310 45 63.5 241 171 73 20 23 27 126 55 M16 UKX10;H2310 PX10 4.22
UKPX10;HS2310 1-5/8 2-1/2 9-1/2 6-47/64 2-7/8 25/32 29/32 1-1/16 4-31/32 2.165 5/8 UKX10;HS2310 PX10 4.22
UKPX10;HA2310 1-11/16 2-1/2 9-1/2 6-47/64 2-7/8 25/32 29/32 1-1/16 4-31/32 2.165 5/8 UKX10;HA2310 PX10 4.22
UKPX10;HE2310 1-3/4 2-1/2 9-1/2 6-47/64 2-7/8 25/32 29/32 1-1/16 4-31/32 2.165 5/8 UKX10;HE2310 PX10 4.22
UKPX11;H2311 50 69.8 260 184 79 25 28 30 137 59 M20 UKX11;H2311 PX11 5.24
UKPX11;HS2311 1-7/8 2-3/4 10-1/4 7-1/4 3-1/8 31/32 1-3/32 1-3/16 5-13/32 2.323 3/4 UKX11;HS2311 PX11 5.24
UKPX11;HA2311 1-15/16 2-3/4 10-1/4 7-1/4 3-1/8 31/32 1-3/32 1-3/16 5-13/32 2.323 3/4 UKX11;HA2311 PX11 5.24
UKPX11;HE2311 2 2-3/4 10-1/4 7-1/4 3-1/8 31/32 1-3/32 1-3/16 5-13/32 2.323 3/4 UKX11;HE2311 PX11 5.24
UKPX12;H2312 55 76.2 286 203 83 25 28 33 151 62 M20 UKX12;H2312 PX12 6.51
UKPX12;HS2312 2-1/8 3 11-1/4 8 3-9/32 63/64 1-3/32 1-5/16 5-15/16 2.441 3/4 UKX12;HS2312 PX12 6.51
UKPX13;H2313 60 76.2 286 203 83 25 28 33 154 65 M20 UKX13;H2313 PX13 6.93
UKPX13;HA2313 2-3/16 3 11-1/4 8 3-9/32 63/64 1-3/32 1-5/16 6-1/16 2.559 3/4 UKX13;HA2313 PX13 6.93
UKPX13;HE2313 2-1/4 3 11-1/4 8 3-9/32 63/64 1-3/32 1-5/16 6-1/16 2.559 3/4 UKX13;HE2313 PX13 6.93
UKPX13;HS2313 2-3/8 3 11-1/4 8 3-9/32 63/64 1-3/32 1-5/16 6-1/16 2.559 3/4 UKX13;HS2313 PX13 6.93
UKPX15;H2315 65 88.9 330 229 89 27 30 35 175 73 M22 UKX15;H2315 PX15 9.4
UKPX15;HA2315 2-7/16 3-1/2 13 9-1/32 3-1/2 1-1/16 1-3/16 1-3/8 6-7/8 2.874 7/8 UKX15;HA2315 PX15 9.4
UKPX15;HS2315 2-1/2 3-1/2 13 9-1/32 3-1/2 1-1/16 1-3/16 1-3/8 6-7/8 2.874 7/8 UKX15;HS2315 PX15 9.4
UKPX16;H2316 70 101.6 381 283 102 27 30 40 194 78 M22 UKX16;H2316 PX16 13.32
UKPX16;HA2316 2-11/16 4 15 11-5/32 4-1/32 1-1/16 1-3/16 1-9/16 7-5/8 3.071 7/8 UKX16;HA2316 PX16 13.32
UKPX16;HS2316 2-3/4 4 15 11-5/32 4-1/32 1-1/16 1-3/16 1-9/16 7-5/8 3.071 7/8 UKX16;HS2316 PX16 13.32
UKPX17;H2317 75 101.6 381 283 102 27 30 40 200 82 M22 UKX17;H2317 PX17 14.55
UKPX17;HA2317 2-15/16 4 15 11-5/32 4-1/32 1-1/16 1-3/16 1-9/16 7-7/8 3.228 7/8 UKX17;HA2317 PX17 14.55
UKPX17;HE2317 3 4 15 11-5/32 4-1/32 1-1/16 1-3/16 1-9/16 7-7/8 3.228 7/8 UKX17;HE2317 PX17 14.55
UKPX18;H2318 80 101.6 381 283 111 27 30 40 206 86 M22 UKX18;H2318 PX18 16.26
UKPX18;HA2318 3-3/16 4 15 11-5/32 4-3/8 1-1/16 1-3/16 1-9/16 8-1/8 3.386 7/8 UKX18;HA2318 PX18 16.26
UKPX20;H2320 90 127 432 337 121 33 36 45 244 97 M27 UKX20;H2320 PX20 23.86
UKPX20;HA2320 3-1/2 5 17 13-9/32 4-3/4 1-5/16 1-13/32 1-25/32 9-5/8 3.819 1 UKX20;HA2320 PX20 23.86
