UCPX00

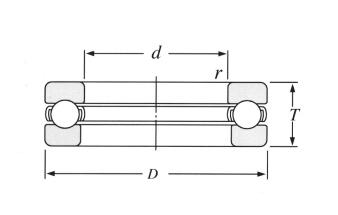

Bearing No.Boundary dimensions(mm)Basic load ratings(KN)Weight(kg)
dDTrsminCrCor
51100 10 24 9 0.3 10 14 0.021
51101 12 26 9 0.3 10.3 15.4 0.023
51102 15 28 9 0.3 10.5 16.8 0.024
51103 17 30 9 0.3 10.8 18.2 0.026
51104 20 35 10 0.3 14.2 24.7 0.04
51105 25 42 11 0.6 19.6 37 0.06
51106 30 47 11 0.6 20.4 42 0.069
51107 35 52 12 0.6 20.4 44.5 0.085
51108 40 60 13 0.6 26.9 63 0.125
51109 45 65 14 0.6 27.9 69 0.148
51110 50 70 14 0.6 28.8 75.5 0.161
51111 55 78 16 0.6 35 93 0.226

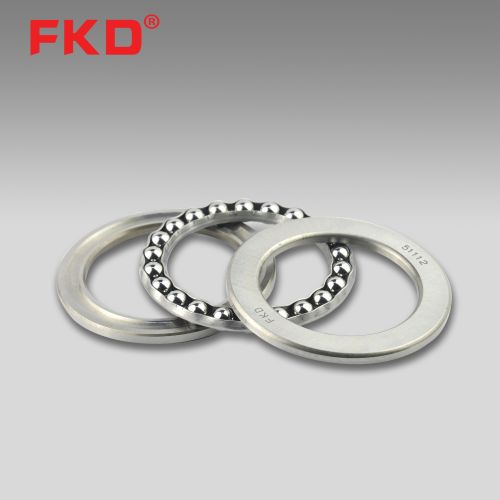

>51112 >60 >85 >17 >1 >41.5 >113 >0.296
51113 65 90 18 1 41.5 117 0.338
51114 70 95 18 1 43 127 0.356
51115 75 100 19 1 44.5 136 0.399
51116 80 105 19 1 44.5 141 0.422
51117 85 110 19 1 46 150 0.444
51118 90 120 22 1 29.5 190 0.687
51120 100 135 25 1 85 268 0.987
51122 110 145 25 1 87 288 1.07
51124 120 155 25 1 89 310 1.11
51126 130 170 30 1 104 350 1.73
51128 140 180 31 1 107 375 1.9
51130 150 190 31 1 109 400 2
51132 160 200 31 1 112 425 2.1
51134 170 215 34 1.1 134 510 2.77
51136 180 225 34 1.1 135 525 2.92
51138 190 240 37 1.1 170 655 3.75
51140 200 250 37 1.1 172 675 3.92
