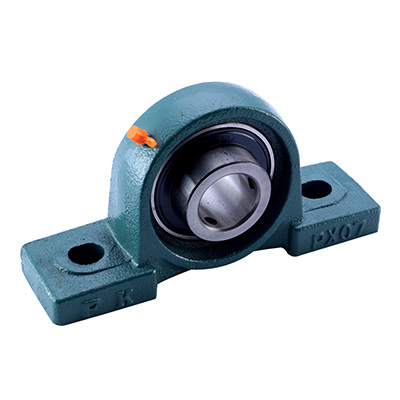

UCPX00

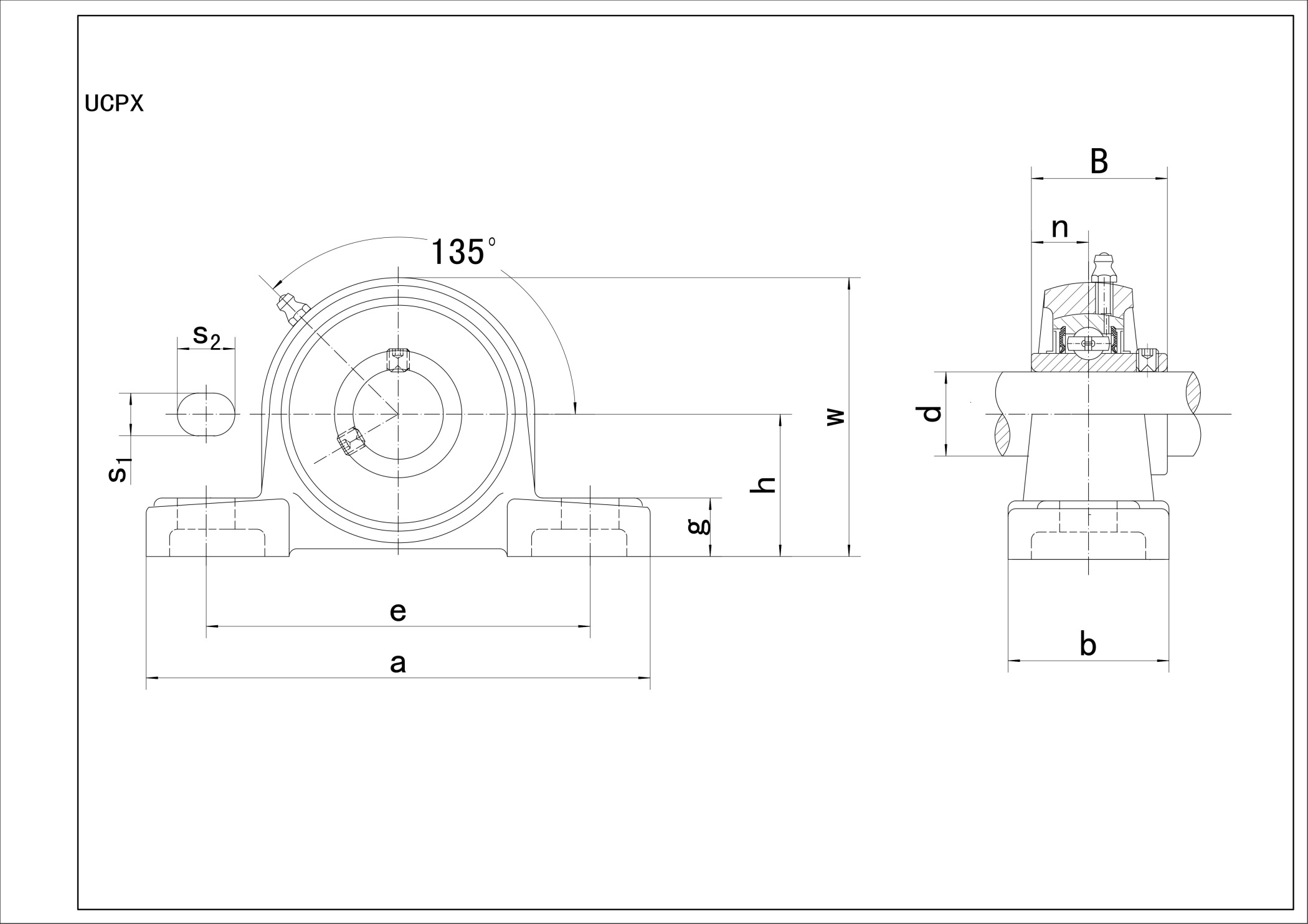

Unit NO.Dimensions ( mm / in. )Bolt Size mm/in.Bearing No.Housing No.Weight (kg)
dhaebs1s2gwBn
UCPX05 25 44.4 159 119 51 17 20 18 85 38.1 15.9 M14 UCX05 PX05 1.33
UCPX05-13 13/16 1-3/4 6-1/4 4-11/16 2 43/64 25/32 23/32 3-11/32 1.5000 0.626 1/2 UCX05-13 PX05 1.33
UCPX05-14 7/8 1-3/4 6-1/4 4-11/16 2 43/64 25/32 23/32 3-11/32 1.5000 0.626 1/2 UCX05-14 PX05 1.33
UCPX05-15 15/16 1-3/4 6-1/4 4-11/16 2 43/64 25/32 23/32 3-11/32 1.5000 0.626 1/2 UCX05-15 PX05 1.33
UCPX05-16 1 1-3/4 6-1/4 4-11/16 2 43/64 25/32 23/32 3-11/32 1.5000 0.626 1/2 UCX05-16 PX05 1.33
UCPX06 30 47.6 175 127 57 17 20 20 93 42.9 17.5 M14 UCX06 PX06 1.71
UCPX06-17 1-1/16 1-7/8 6-7/8 5 2-1/4 43/64 25/32 25/32 3-21/32 1.6890 0.689 1/2 UCX06-17 PX06 1.71
UCPX06-18 1-1/8 1-7/8 6-7/8 5 2-1/4 43/64 25/32 25/32 3-21/32 1.6890 0.689 1/2 UCX06-18 PX06 1.71
UCPX06-19 1-3/16 1-7/8 6-7/8 5 2-1/4 43/64 25/32 25/32 3-21/32 1.6890 0.689 1/2 UCX06-19 PX06 1.71
UCPX06-20 1-1/4 1-7/8 6-7/8 5 2-1/4 43/64 25/32 25/32 3-21/32 1.6890 0.689 1/2 UCX06-20 PX06 1.71
UCPX07 35 54 203 144 57 17 20 21 105 49.2 19 M14 UCX07 PX07 2.3
UCPX07-21 1-5/16 2-1/8 8 5-21/32 2-1/4 43/64 25/32 13/16 4-1/8 1.9370 0.748 1/2 UCX07-21 PX07 2.3
UCPX07-22 1-3/8 2-1/8 8 5-21/32 2-1/4 43/64 25/32 13/16 4-1/8 1.9370 0.748 1/2 UCX07-22 PX07 2.3
UCPX07-23 1-7/16 2-1/8 8 5-21/32 2-1/4 43/64 25/32 13/16 4-1/8 1.9370 0.748 1/2 UCX07-23 PX07 2.3
UCPX08 40 58.7 222 156 67 20 23 26 111 49.2 19 M16 UCX08 PX08 2.84
UCPX08-24 1-1/2 2-5/16 8-3/4 6-5/32 2-5/8 25/32 29/32 1-1/32 4-3/8 1.9370 0.748 5/8 UCX08-24 PX08 2.84
UCPX08-25 1-9/16 2-5/16 8-3/4 6-5/32 2-5/8 25/32 29/32 1-1/32 4-3/8 1.9370 0.748 5/8 UCX08-25 PX08 2.84
UCPX09 45 58.7 222 156 67 20 23 26 116 51.6 19 M16 UCX09 PX09 3.2
UCPX09-26 1-5/8 2-5/16 8-3/4 6-5/32 2-5/8 25/32 29/32 1-1/32 4-9/16 2.0315 0.748 5/8 UCX09-26 PX09 3.2
UCPX09-27 1-11/16 2-5/16 8-3/4 6-5/32 2-5/8 25/32 29/32 1-1/32 4-9/16 2.0315 0.748 5/8 UCX09-27 PX09 3.2
UCPX09-28 1-3/4 2-5/16 8-3/4 6-5/32 2-5/8 25/32 29/32 1-1/32 4-9/16 2.0315 0.748 5/8 UCX09-28 PX09 3.2
UCPX09-29 1-13/16 2-5/16 8-3/4 6-5/32 2-5/8 25/32 29/32 1-1/32 4-9/16 2.0315 0.748 5/8 UCX09-29 PX09 3.2
UCPX10 50 63.5 241 171 73 20 23 27 126 55.6 22.2 M16 UCX10 PX10 4.07
UCPX10-30 1-7/8 2-1/2 9-1/2 6-47/64 2-7/8 25/32 29/32 1-1/16 4-31/32 2.1890 0.874 5/8 UCX10-30 PX10 4.07
UCPX10-31 1-15/16 2-1/2 9-1/2 6-47/64 2-7/8 25/32 29/32 1-1/16 4-31/32 2.1890 0.874 5/8 UCX10-31 PX10 4.07
UCPX10-32 2 2-1/2 9-1/2 6-47/64 2-7/8 25/32 29/32 1-1/16 4-31/32 2.1890 0.874 5/8 UCX10-32 PX10 4.07
UCPX11 55 69.8 260 184 79 25 28 30 137 65.1 25.4 M20 UCX11 PX11 5.18
UCPX11-33 2-1/16 2-3/4 10-1/4 7-1/4 3-1/8 31/32 1-3/32 1-3/16 5-13/32 2.5630 1.000 3/4 UCX11-33 PX11 5.18
UCPX11-34 2-1/8 2-3/4 10-1/4 7-1/4 3-1/8 31/32 1-3/32 1-3/16 5-13/32 2.5630 1.000 3/4 UCX11-34 PX11 5.18
UCPX11-35 2-3/16 2-3/4 10-1/4 7-1/4 3-1/8 31/32 1-3/32 1-3/16 5-13/32 2.5630 1.000 3/4 UCX11-35 PX11 5.18
UCPX11-36 2-1/4 2-3/4 10-1/4 7-1/4 3-1/8 31/32 1-3/32 1-3/16 5-13/32 2.5630 1.000 3/4 UCX11-36 PX11 5.18
UCPX11-37 2-5/16 2-3/4 10-1/4 7-1/4 3-1/8 31/32 1-3/32 1-3/16 5-13/32 2.5630 1.000 3/4 UCX11-37 PX11 5.18
UCPX12 60 76.2 286 203 83 25 28 33 151 65.1 25.4 M20 UCX12 PX12 6.67
UCPX12-38 2-3/8 3 11-1/4 8 3-9/32 31/32 1-3/32 1-5/16 5-15/16 2.5630 1.000 3/4 UCX12-38 PX12 6.67
UCPX12-39 2-7/16 3 11-1/4 8 3-9/32 31/32 1-3/32 1-5/16 5-15/16 2.5630 1.000 3/4 UCX12-39 PX12 6.67
UCPX13 65 76.2 286 203 83 25 28 33 154 74.6 30.2 M20 UCX13 PX13 6.92
UCPX13-40 2-1/2 3 11-1/4 8 3-9/32 63/64 1-3/32 1-5/16 6-1/16 2.9370 1.189 3/4 UCX13-40 PX13 6.92
UCPX13-41 2-9/16 3 11-1/4 8 3-9/32 63/64 1-3/32 1-5/16 6-1/16 2.9370 1.189 3/4 UCX13-41 PX13 6.92
UCPX14 70 88.9 330 229 89 27 30 35 170 77.8 33.3 M22 UCX14 PX14 8.64
UCPX14-42 2-5/8 3-1/2 13 9-1/32 3-1/2 1-1/16 1-3/16 1-3/8 6-11/16 3.0630 1.311 7/8 UCX14-42 PX14 8.64
UCPX14-43 2-11/16 3-1/2 13 9-1/32 3-1/2 1-1/16 1-3/16 1-3/8 6-11/16 3.0630 1.311 7/8 UCX14-43 PX14 8.64
UCPX14-44 2-3/4 3-1/2 13 9-1/32 3-1/2 1-1/16 1-3/16 1-3/8 6-11/16 3.0630 1.311 7/8 UCX14-44 PX14 8.64
UCPX15 75 88.9 330 229 89 27 30 35 175 82.6 33.3 M22 UCX15 PX15 9.4
UCPX15-45 2-13/16 3-1/2 13 9-1/32 3-1/2 1-1/16 1-3/16 1-3/8 6-7/8 3.2520 1.311 7/8 UCX15-45 PX15 9.4
UCPX15-46 2-7/8 3-1/2 13 9-1/32 3-1/2 1-1/16 1-3/16 1-3/8 6-7/8 3.2520 1.311 7/8 UCX15-46 PX15 9.4
UCPX15-47 2-15/16 3-1/2 13 9-1/32 3-1/2 1-1/16 1-3/16 1-3/8 6-7/8 3.2520 1.311 7/8 UCX15-47 PX15 9.4
UCPX15-48 3 3-1/2 13 9-1/32 3-1/2 1-1/16 1-3/16 1-3/8 6-7/8 3.2520 1.311 7/8 UCX15-48 PX15 9.4
UCPX16 80 101.6 381 283 102 27 30 40 194 85.7 34.1 M22 UCX16 PX16 13.44
UCPX16-49 3-1/16 4 15 11-5/32 4-1/32 1-1/16 1-3/16 1-9/16 7-5/8 3.3740 1.343 7/8 UCX16-49 PX16 13.44
UCPX16-50 3-1/8 4 15 11-5/32 4-1/32 1-1/16 1-3/16 1-9/16 7-5/8 3.3740 1.343 7/8 UCX16-50 PX16 13.44
UCPX16-51 3-3/16 4 15 11-5/32 4-1/32 1-1/16 1-3/16 1-9/16 7-5/8 3.3740 1.343 7/8 UCX16-51 PX16 13.44
UCPX16-52 3-1/4 4 15 11-5/32 4-1/32 1-1/16 1-3/16 1-9/16 7-5/8 3.3740 1.343 7/8 UCX16-52 PX16 13.44
UCPX17 85 101.6 381 283 102 27 30 40 200 96 39.7 M22 UCX17 PX17 14.57
UCPX17-53 3-5/16 4 15 11-5/32 4-1/32 1-1/16 1-3/16 1-9/16 7-7/8 3.7795 1.563 7/8 UCX17-53 PX17 14.57
UCPX17-55 3-7/16 4 15 11-5/32 4-1/32 1-1/16 1-3/16 1-9/16 7-7/8 3.7795 1.563 7/8 UCX17-55 PX17 14.57
UCPX18 90 101.6 381 283 111 27 30 40 206 104 42.9 M22 UCX18 PX18 16.47
UCPX18-56 3-1/2 4 15 11-5/32 4-3/8 1-1/16 1-3/16 1-37/64 8-7/64 4.0945 1.6890 7/8 UCX18-56 PX18 16.47
UCPX20 100 127 432 337 121 33 36 45 244 117.5 49.2 M27 UCX20 PX20 24.91
UCPX20-64 4 5 17 13-9/32 4-3/4 1-5/16 1-27/64 1-25/32 9-39/64 4.6260 1.9370 1 UCX20-64 PX20 24.91
