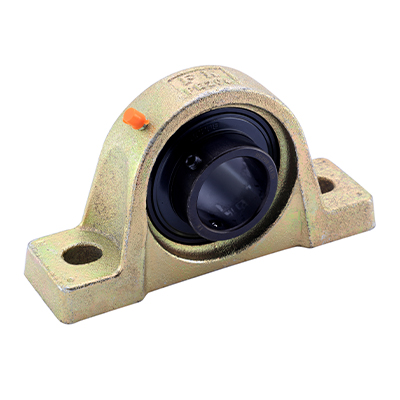

UCPE200

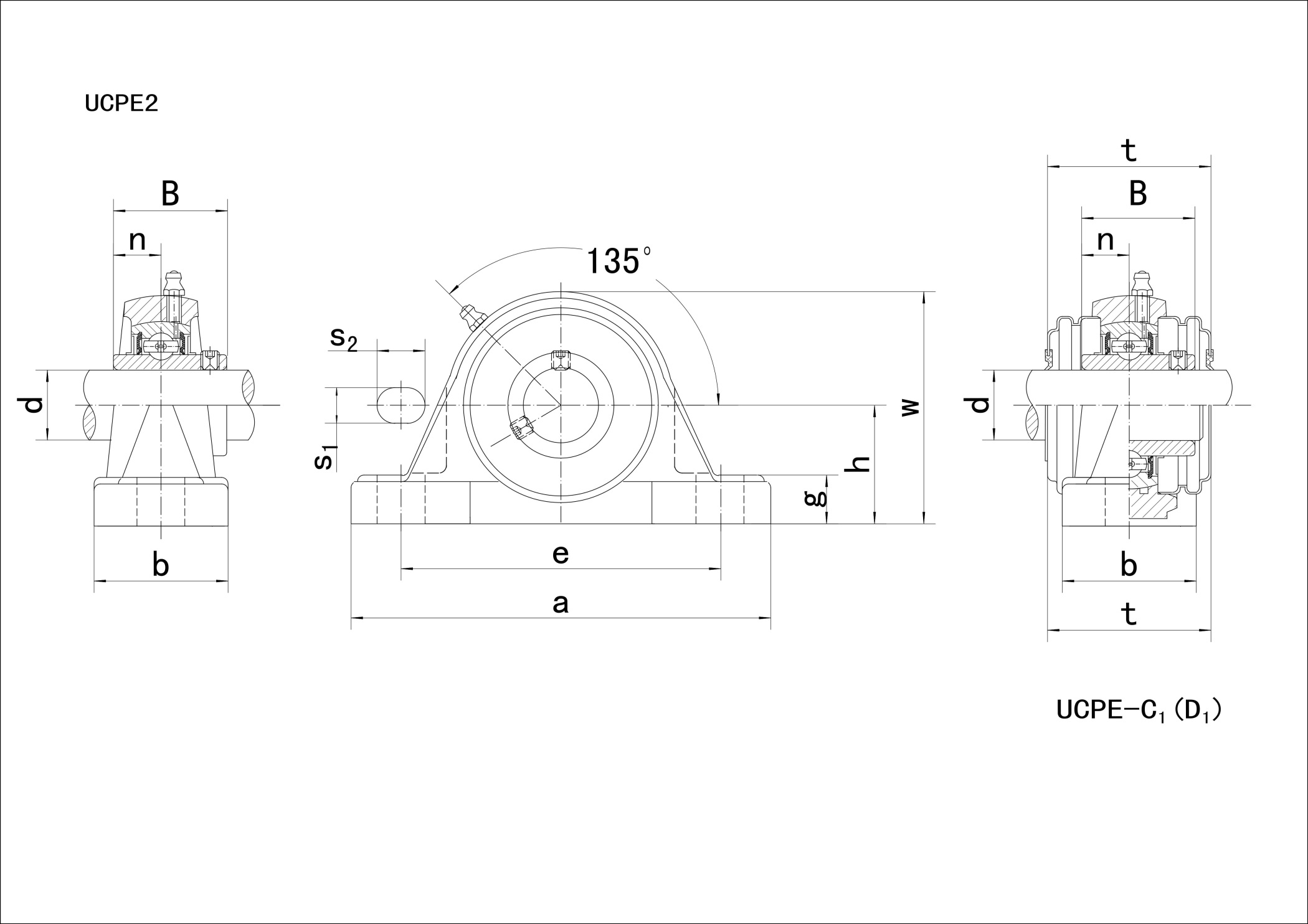

Unit NO.Demension(mm/in)Bolt size (mm/in)Bearing NO.HOUSING NO.Weight (kg)
dhaebs1s2gwtBn
UCPE201 12 33.3 127 95 38 13 19 14 65 44.5 31 12.7 M10 UC201 PE201 0.78
UCPE201-8 1/2 1-5/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-9/16 1-3/4 1.2205 0.500 3/8 UC201-8 PE201 0.78
UCPE202 15 33.3 127 95 38 13 19 14 65 44.5 31 12.7 M10 UC202 PE202 0.77
UCPE202-9 9/16 1-5/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-9/16 1-3/4 1.2205 0.500 3/8 UC202-9 PE202 0.77
UCPE202-10 5/8 1-5/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-9/16 1-3/4 1.2205 0.500 3/8 UC202-10 PE202 0.77
UCPE203 17 33.3 127 95 38 13 19 14 65 44.5 31 12.7 M10 UC203 PE203 0.76
UCPE203-11 11/16 1-5/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-9/16 1-3/4 1.2205 0.500 3/8 UC203-11 PE203 0.75
UCPE204 20 33.3 127 95 38 13 19 14 65 44.5 31 12.7 M10 UC204 PE204 0.74
UCPE204-12 3/4 1-5/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-9/16 1-3/4 1.2205 0.500 3/8 UC204-12 PE204 0.74
UCPE205 25 36.5 140 105 38 13 19 15 71 48 34.1 14.3 M10 UC205 PE205 0.89
UCPE205-13 13/16 1-7/16 5-1/2 4-1/8 1-1/2 1/2 3/4 19/32 2-25/32 1-57/64 1.3425 0.563 3/8 UC205-13 PE205 0.93
UCPE205-14 7/8 1-7/16 5-1/2 4-1/8 1-1/2 1/2 3/4 19/32 2-25/32 1-57/64 1.3425 0.563 3/8 UC205-14 PE205 0.92
UCPE205-15 15/16 1-7/16 5-1/2 4-1/8 1-1/2 1/2 3/4 19/32 2-25/32 1-57/64 1.3425 0.563 3/8 UC205-15 PE205 0.9
UCPE205-16 1 1-7/16 5-1/2 4-1/8 1-1/2 1/2 3/4 19/32 2-25/32 1-57/64 1.3425 0.563 3/8 UC205-16 PE205 0.89
UCPE206 30 42.9 160 121 44 17 20 17 84 53 38.1 15.9 M14 UC206 PE206 1.37
UCPE206-17 1-1/16 1-11/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/16 2-5/64 1.5000 0.626 1/2 UC206-17 PE206 1.38
UCPE206-18 1-1/8 1-11/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/16 2-5/64 1.5000 0.626 1/2 UC206-18 PE206 1.39
UCPE206-19 1-3/16 1-11/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/16 2-5/64 1.5000 0.626 1/2 UC206-19 PE206 1.37
UCPE206-20 1-1/4 1-11/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/16 2-5/64 1.5000 0.626 1/2 UC206-20 PE206 1.36
UCPE207 35 47.6 167 127 48 17 20 18 93 59.5 42.9 17.5 M14 UC207 PE207 1.72
UCPE207-20 1-1/4 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 2-11/32 1.6890 0.689 1/2 UC207-20 PE207 1.78
UCPE207-21 1-5/16 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 2-11/32 1.6890 0.689 1/2 UC207-21 PE207 1.75
UCPE207-22 1-3/8 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 2-11/32 1.6890 0.689 1/2 UC207-22 PE207 1.72
UCPE207-23 1-7/16 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 2-11/32 1.6890 0.689 1/2 UC207-23 PE207 1.69
UCPE208 40 49.2 184 137 54 17 20 18 100 69 49.2 19 M14 UC208 PE208 2.2
UCPE208-24 1-1/2 1-15/16 7-1/4 5-13/32 2-1/8 43/64 25/32 45/64 3-15/16 2-23/32 1.9370 0.748 1/2 UC208-24 PE208 2.24
UCPE208-25 1-9/16 1-15/16 7-1/4 5-13/32 2-1/8 43/64 25/32 45/64 3-15/16 2-23/32 1.9370 0.748 1/2 UC208-25 PE208 2.21
UCPE209 45 54 190 146 54 17 20 20 106 69 49.2 19 M14 UC209 PE209 2.44
UCPE209-26 1-5/8 2-1/8 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-11/64 2-23/32 1.9370 0.748 1/2 UC209-26 PE209 2.54
UCPE209-27 1-11/16 2-1/8 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-11/64 2-23/32 1.9370 0.748 1/2 UC209-27 PE209 2.5
UCPE209-28 1-3/4 2-1/8 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-11/64 2-23/32 1.9370 0.748 1/2 UC209-28 PE209 2.46
UCPE210 50 57.2 206 159 60 20 23 21 113 74.5 51.6 19 M16 UC210 PE210 3.05
UCPE210-29 1-13/16 2-1/4 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-29/64 2-15/16 2.0315 0.748 5/8 UC210-29 PE210 3.17
UCPE210-30 1-7/8 2-1/4 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-29/64 2-15/16 2.0315 0.748 5/8 UC210-30 PE210 3.12
UCPE210-31 1-15/16 2-1/4 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-29/64 2-15/16 2.0315 0.748 5/8 UC210-31 PE210 3.07
UCPE210-32 2 2-1/4 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 4-29/64 2-15/16 2.0315 0.748 5/8 UC210-32 PE210 3.03
UCPE211 55 63.5 219 171 60 20 23 23 125 76 55.6 22.2 M16 UC211 PE211 3.73
UCPE211-32 2 2-1/2 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-59/64 3 2.1890 0.874 5/8 UC211-32 PE211 3.88
UCPE211-33 2-1/16 2-1/2 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-59/64 3 2.1890 0.874 5/8 UC211-33 PE211 3.82
UCPE211-34 2-1/8 2-1/2 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-59/64 3 2.1890 0.874 5/8 UC211-34 PE211 3.78
UCPE211-35 2-3/16 2-1/2 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-59/64 3 2.1890 0.874 5/8 UC211-35 PE211 3.71
UCPE212 60 69.8 241 184 70 20 23 25 138 89 65.1 25.4 M16 UC212 PE212 5.25
UCPE212-36 2-1/4 2-3/4 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-7/16 3-1/2 2.5630 1.000 5/8 UC212-36 PE212 5.38
UCPE212-37 2-5/16 2-3/4 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-7/16 3-1/2 2.5630 1.000 5/8 UC212-37 PE212 5.3
UCPE212-38 2-3/8 2-3/4 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-7/16 3-1/2 2.5630 1.000 5/8 UC212-38 PE212 5.23
UCPE212-39 2-7/16 2-3/4 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-7/16 3-1/2 2.5630 1.000 5/8 UC212-39 PE212 5.16
UCPE213 65 76.2 265 203 70 25 28 27 150 89 65.1 25.4 M20 UC213 PE213 6.22
UCPE213-40 2-1/2 3 10-7/16 8 2-3/4 63/64 1-3/32 1-1/16 5-29/32 3-1/2 2.5630 1.000 3/4 UC213-40 PE213 6.31
UCPE213-41 2-9/16 3 10-7/16 8 2-3/4 63/64 1-3/32 1-1/16 5-29/32 3-1/2 2.5630 1.000 3/4 UC213-41 PE213 6.22
UCPE214 70 79.4 266 210 72 25 28 27 156 98 74.6 30.2 M20 UC214 PE214 6.83
UCPE214-42 2-5/8 3-1/8 10-15/32 8-17/64 2-27/32 63/64 1-3/32 1-1/16 6-9/64 3-55/64 2.9370 1.189 3/4 UC214-42 PE214 7.04
UCPE214-43 2-11/16 3-1/8 10-15/32 8-17/64 2-27/32 63/64 1-3/32 1-1/16 6-9/64 3-55/64 2.9370 1.189 3/4 UC214-43 PE214 6.94
UCPE214-44 2-3/4 3-1/8 10-15/32 8-17/64 2-27/32 63/64 1-3/32 1-1/16 6-9/64 3-55/64 2.9370 1.189 3/4 UC214-44 PE214 6.84
UCPE215 75 82.6 275 217 74 25 28 28 162 99 77.8 33.3 M20 UC215 PE215 7.56
UCPE215-45 2-13/16 3-1/4 10-53/64 8-35/64 2-29/32 63/64 1-3/32 1-3/32 6-3/8 3-57/64 3.0630 1.311 3/4 UC215-45 PE215 7.56
UCPE215-46 2-7/8 3-1/4 10-53/64 8-35/64 2-29/32 63/64 1-3/32 1-3/32 6-3/8 3-57/64 3.0630 1.311 3/4 UC215-46 PE215 7.81
UCPE215-47 2-15/16 3-1/4 10-53/64 8-35/64 2-29/32 63/64 1-3/32 1-3/32 6-3/8 3-57/64 3.0630 1.311 3/4 UC215-47 PE215 7.7
UCPE215-48 3 3-1/4 10-53/64 8-35/64 2-29/32 63/64 1-3/32 1-3/32 6-3/8 3-57/64 3.0630 1.311 3/4 UC215-48 PE215 7.5
UCPE216 80 88.9 292 232 78 25 28 30 174 109 82.6 33.3 M20 UC216 PE216 9.22
UCPE216-49 3-1/16 3-1/2 11-1/2 9-1/8 3-1/16 63/64 1-3/32 1-3/16 6-27/32 4-19/64 3.2520 1.311 3/4 UC216-49 PE216 9.4
UCPE216-50 3-1/8 3-1/2 11-1/2 9-1/8 3-1/16 63/64 1-3/32 1-3/16 6-27/32 4-19/64 3.2520 1.311 3/4 UC216-50 PE216 9.27
UCPE216-51 3-3/16 3-1/2 11-1/2 9-1/8 3-1/16 63/64 1-3/32 1-3/16 6-27/32 4-19/64 3.2520 1.311 3/4 UC216-51 PE216 9.14
UCPE217 85 95.2 310 247 83 25 28 32 185 113.2 85.7 34.1 M20 UC217 PE217 11.23
UCPE217-52 3-1/4 3-3/4 12-13/64 9-23/32 3-17/64 63/64 1-3/32 1-1/4 7-9/32 4-29/64 3.3740 1.343 3/4 UC217-52 PE217 11.35
UCPE217-53 3-5/16 3-3/4 12-13/64 9-23/32 3-17/64 63/64 1-3/32 1-1/4 7-9/32 4-29/64 3.3740 1.343 3/4 UC217-53 PE217 11.31
UCPE217-55 3-7/16 3-3/4 12-13/64 9-23/32 3-17/64 63/64 1-3/32 1-1/4 7-9/32 4-29/64 3.3740 1.343 3/4 UC217-55 PE217 11.02
UCPE218 90 101.6 327 262 88 27 30 33 198 123 96 39.7 M22 UC218 PE218 13.61
UCPE218-56 3-1/2 4 12-7/8 10-5/16 3-15/32 1-1/16 1-3/16 1-19/64 7-51/64 4-27/32 3.7795 1.5630 7/8 UC218-56 PE218 13.72
