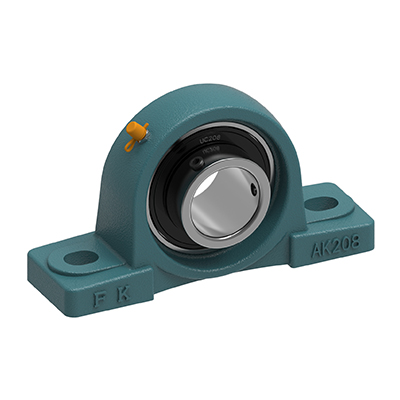

UCAK200

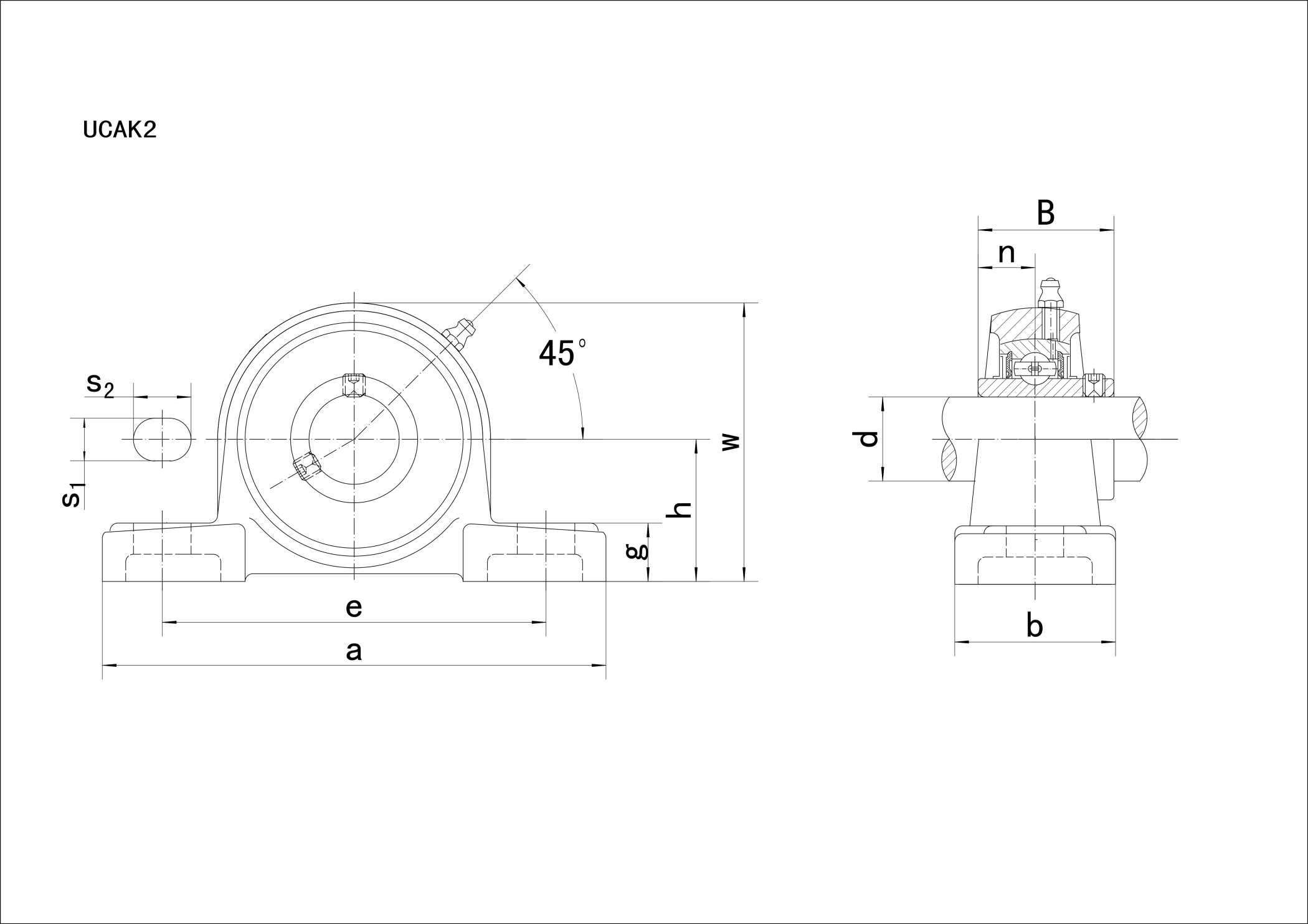

Unit NO.Dimensions ( mm / in. )Bolt Size mm/in.Bearing No.Housing No.Weight (kg)
dhaebs1s2gwBn
UCAK204 20 31.75 133 98 41 13 16 14 64 31 12.7 M10 UC204 AK204 0.74
UCAK204-12 3/4 1-1/4 5-15/64 3-55/64 1-5/8 1/2 5/8 9/16 2-33/64 1.2205 0.500 3/8 UC204-12 AK204 0.74
UCAK205 25 33.34 140 105 44 13 16 16 68 34.1 14.3 M10 UC205 AK205 0.88
UCAK205-13 13/16 1-5/16 5-33/64 4-9/64 1-47/64 1/2 5/8 5/8 2-43/64 1.3425 0.563 3/8 UC205-13 AK205 0.92
UCAK205-14 7/8 1-5/16 5-33/64 4-9/64 1-47/64 1/2 5/8 5/8 2-43/64 1.3425 0.563 3/8 UC205-14 AK205 0.91
UCAK205-15 15/16 1-5/16 5-33/64 4-9/64 1-47/64 1/2 5/8 5/8 2-43/64 1.3425 0.563 3/8 UC205-15 AK205 0.89
UCAK205-16 1 1-5/16 5-33/64 4-9/64 1-47/64 1/2 5/8 5/8 2-43/64 1.3425 0.563 3/8 UC205-16 AK205 0.88
UCAK206 30 39.69 160 121 48 15 19 17 80 38.1 15.9 M12 UC206 AK206 1.27
UCAK206-17 1-1/16 1-9/16 6-19/64 4-49/64 1-57/64 19/32 3/4 43/64 3-5/32 1.5000 0.626 7/16 UC206-17 AK206 1.28
UCAK206-18 1-1/8 1-9/16 6-19/64 4-49/64 1-57/64 19/32 3/4 43/64 3-5/32 1.5000 0.626 7/16 UC206-18 AK206 1.29
UCAK206-19 1-3/16 1-9/16 6-19/64 4-49/64 1-57/64 19/32 3/4 43/64 3-5/32 1.5000 0.626 7/16 UC206-19 AK206 1.27
UCAK206-20 1-1/4 1-9/16 6-19/64 4-49/64 1-57/64 19/32 3/4 43/64 3-5/32 1.5000 0.626 7/16 UC206-20 AK206 1.26
UCAK207 35 46.04 167 127 48 15 19 19 92 42.9 17.5 M12 UC207 AK207 1.6
UCAK207-20 1-1/4 1-13/16 6-37/64 5 1-57/64 19/32 3/4 3/4 3-5/8 1.6890 0.689 7/16 UC207-20 AK207 1.66
UCAK207-21 1-5/16 1-13/16 6-37/64 5 1-57/64 19/32 3/4 3/4 3-5/8 1.6890 0.689 7/16 UC207-21 AK207 1.63
UCAK207-22 1-3/8 1-13/16 6-37/64 5 1-57/64 19/32 3/4 3/4 3-5/8 1.6890 0.689 7/16 UC207-22 AK207 1.6
UCAK207-23 1-7/16 1-13/16 6-37/64 5 1-57/64 19/32 3/4 3/4 3-5/8 1.6890 0.689 7/16 UC207-23 AK207 1.57
UCAK208 40 49.2 181 140 54 15 19 19 100 49.2 19 M12 UC208 AK208 2.09
UCAK208-24 1-1/2 1-15/16 7-1/8 5-33/64 2-1/8 19/32 3/4 3/4 3-15/16 1.9370 0.748 7/16 UC208-24 AK208 2.13
UCAK208-25 1-9/16 1-15/16 7-1/8 5-33/64 2-1/8 19/32 3/4 3/4 3-15/16 1.9370 0.748 7/16 UC208-25 AK208 2.1
UCAK209 45 52.39 190 146 54 15 19 21 106 49.2 19 M12 UC209 AK209 2.34
UCAK209-26 1-5/8 2-1/16 7-15/32 5-3/4 2-1/8 19/32 3/4 53/64 4-11/64 1.9370 0.748 7/16 UC209-26 AK209 2.44
UCAK209-27 1-11/16 2-1/16 7-15/32 5-3/4 2-1/8 19/32 3/4 53/64 4-11/64 1.9370 0.748 7/16 UC209-27 AK209 2.4
UCAK209-28 1-3/4 2-1/16 7-15/32 5-3/4 2-1/8 19/32 3/4 53/64 4-11/64 1.9370 0.748 7/16 UC209-28 AK209 2.36
UCAK210 50 55.56 203 159 57 15 19 22 113 51.6 19 M12 UC210 AK210 2.85
UCAK210-29 1-13/16 2-3/16 8 6-17/64 2-1/4 19/32 3/4 7/8 4-29/64 2.0315 0.748 7/16 UC210-29 AK210 2.97
UCAK210-30 1-7/8 2-3/16 8 6-17/64 2-1/4 19/32 3/4 7/8 4-29/64 2.0315 0.748 7/16 UC210-30 AK210 2.92
UCAK210-31 1-15/16 2-3/16 8 6-17/64 2-1/4 19/32 3/4 7/8 4-29/64 2.0315 0.748 7/16 UC210-31 AK210 2.87
UCAK210-32 2 2-3/16 8 6-17/64 2-1/4 19/32 3/4 7/8 4-29/64 2.0315 0.748 7/16 UC210-32 AK210 2.83
UCAK211 55 61.9 232 181 60 19 24 25 125 55.6 22.2 M16 UC211 AK211 3.7
UCAK211-32 2 2-1/4 9-9/64 7-1/8 2-23/64 3/4 15/16 63/64 4-59/64 2.1890 0.874 5/8 UC211-32 AK211 3.85
UCAK211-33 2-1/16 2-1/4 9-9/64 7-1/8 2-23/64 3/4 15/16 63/64 4-59/64 2.1890 0.874 5/8 UC211-33 AK211 3.79
UCAK211-34 2-1/8 2-1/4 9-9/64 7-1/8 2-23/64 3/4 15/16 63/64 4-59/64 2.1890 0.874 5/8 UC211-34 AK211 3.75
UCAK211-35 2-3/16 2-1/4 9-9/64 7-1/8 2-23/64 3/4 15/16 63/64 4-59/64 2.1890 0.874 5/8 UC211-35 AK211 3.68
UCAK212 60 68.3 241 190 64 19 24 29 137 65.1 25.4 M16 UC212 AK212 4.7
UCAK212-36 2-1/4 2-11/16 9-31/64 7-31/64 2-33/64 3/4 15/16 1-9/64 5-25/64 2.5630 1.000 5/8 UC212-36 AK212 4.83
UCAK212-37 2-5/16 2-11/16 9-31/64 7-31/64 2-33/64 3/4 15/16 1-9/64 5-25/64 2.5630 1.000 5/8 UC212-37 AK212 4.75
UCAK212-38 2-3/8 2-11/16 9-31/64 7-31/64 2-33/64 3/4 15/16 1-9/64 5-25/64 2.5630 1.000 5/8 UC212-38 AK212 4.68
UCAK212-39 2-7/16 2-11/16 9-31/64 7-31/64 2-33/64 3/4 15/16 1-9/64 5-25/64 2.5630 1.000 5/8 UC212-39 AK212 4.61
