UCCP200

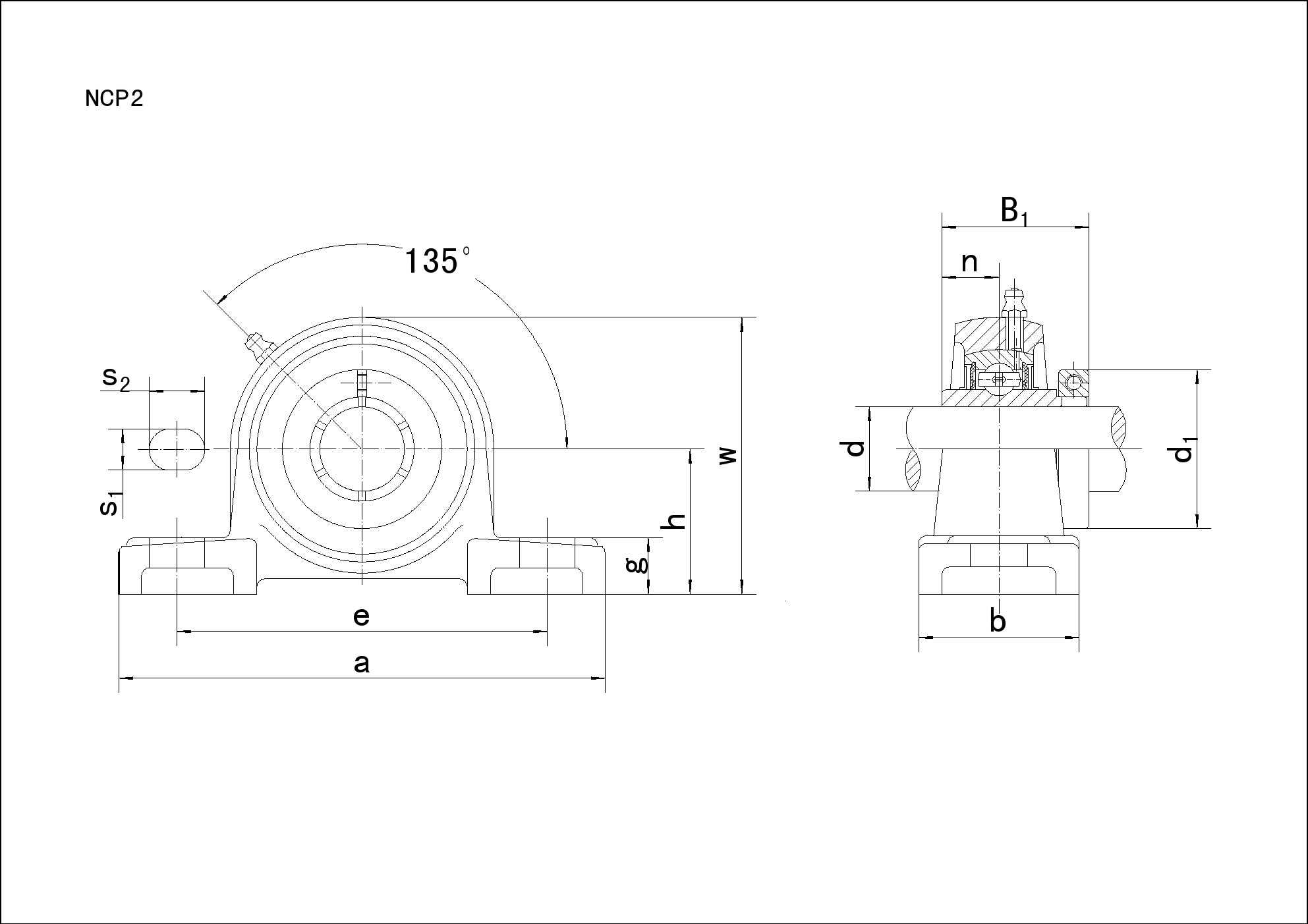

Unit NO.Dimensions (mm / in.)Bolt Size mm/in.Bearing No.Housing No.Weight (kg)
dd1haebs1s2gwB1n
NCP204 20 44.5 33.3 127 95 38 13 19 14 65 33.4 12.7 M10 NC204 P204 0.79
NCP204-12 3/4 1-3/4 1-5/16 5 3-3/4 1-1/2 1/2 3/4 9/16 2-9/16 1.315 0.500 3/8 NC204-12 P204 0.79
NCP205 25 49.2 36.5 140 105 38 13 19 15 71 36.5 14.3 M10 NC205 P205 0.97
NCP205-14 7/8 1-15/16 1-7/16 5-1/2 4-1/8 1/1/2 1/2 3/4 19/32 2-25/32 1.437 0.563 3/8 NC205-14 P205 0.97
NCP205-15 15/16 1-15/16 1-7/16 5-1/2 4-1/8 1/1/2 1/2 3/4 19/32 2-25/32 1.437 0.563 3/8 NC205-15 P205 0.97
NCP205-16 1 1-15/16 1-7/16 5-1/2 4-1/8 1/1/2 1/2 3/4 19/32 2-25/32 1.437 0.563 3/8 NC205-16 P205 0.97
NCP206 30 55.6 42.9 160 121 44 17 20 17 84 39.7 15.9 M14 NC206 P206 1.4
NCP206-18 1-1/8 2-3/16 1-11/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/16 1.563 0.626 1/2 NC206-18 P206 1.4
NCP206-19 1-3/16 2-3/16 1-11/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/16 1.563 0.626 1/2 NC206-19 P206 1.4
NCP206-20 1-1/4 2-3/16 1-11/16 6-19/64 4-3/4 1-47/64 43/64 25/32 21/32 3-5/16 1.563 0.626 1/2 NC206-20 P206 1.4
NCP207 35 65.1 47.6 167 127 48 17 20 18 93 44.5 17.5 M14 NC207 P207 1.81
NCP207-20 1-1/4 2-7/16 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 1.752 0.740 1/2 NC207-20 P207 1.81
NCP207-22 1-3/8 2-9/16 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 1.752 0.740 1/2 NC207-22 P207 1.81
NCP207-23 1-7/16 2-9/16 1-7/8 6-9/16 5 1-7/8 43/64 25/32 45/64 3-21/32 1.752 0.740 1/2 NC207-23 P207 1.81
NCP208 40 68.3 49.2 184 137 54 17 20 18 100 50.8 19 M14 NC208 P208 2.26
NCP208-24 1-1/2 2-11/16 1-15/16 7-1/4 5-13/32 2-1/8 43/64 25/32 45/64 3-15/16 2 0.748 1/2 NC208-24 P208 2.26
NCP209 45 74.6 54 190 146 54 17 20 20 106 50.8 19 M14 NC209 P209 2.51
NCP209-26 1-5/8 2-13/16 2-1/8 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-11/64 2 0.748 1/2 NC209-26 P209 2.51
NCP209-27 1-11/16 2-15/16 2-1/8 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-11/64 2 0.748 1/2 NC209-27 P209 2.51
NCP209-28 1-3/4 2-15/16 2-1/8 7-15/32 5-3/4 2-1/8 43/64 25/32 25/32 4-11/64 2 0.748 1/2 NC209-28 P209 2.51
NCP210 50 85.7 57.2 206 159 60 20 23 21 113 53.1 19 M16 NC210 P210 3.26
NCP210-31 1-15/16 3-3/8 2-1/4 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 2-29/64 2.091 0.748 5/8 NC210-31 P210 3.26
NCP210-32 2 3-3/8 2-1/4 8-1/8 6-1/4 2-3/8 25/32 29/32 53/64 2-29/64 2.091 0.748 5/8 NC210-32 P210 3.26
NCP211 55 92.1 63.5 219 171 60 20 23 23 125 57.1 22.2 M16 NC211 P211 3.74
NCP211-32 2 3-1/2 2-1/2 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-59/64 2.248 0.874 5/8 NC211-32 P211 3.74
NCP211-35 2-3/16 3-5/8 2-1/2 8-5/8 6-47/64 2-3/8 25/32 29/32 29/32 4-59/64 2.248 0.874 5/8 NC211-35 P211 3.74
NCP212 60 104.8 69.8 241 184 70 20 23 25 138 66.7 25.4 M16 NC212 P212 5.25
NCP212-36 2-1/4 4-1/16 2-3/4 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-7/16 2.626 1.000 5/8 NC212-36 P212 5.25
NCP212-39 2-7/16 4-1/8 2-3/4 9-1/2 7-1/4 2-3/4 25/32 29/32 63/64 5-7/16 2.626 1.000 5/8 NC212-39 P212 5.25
