HCASE200

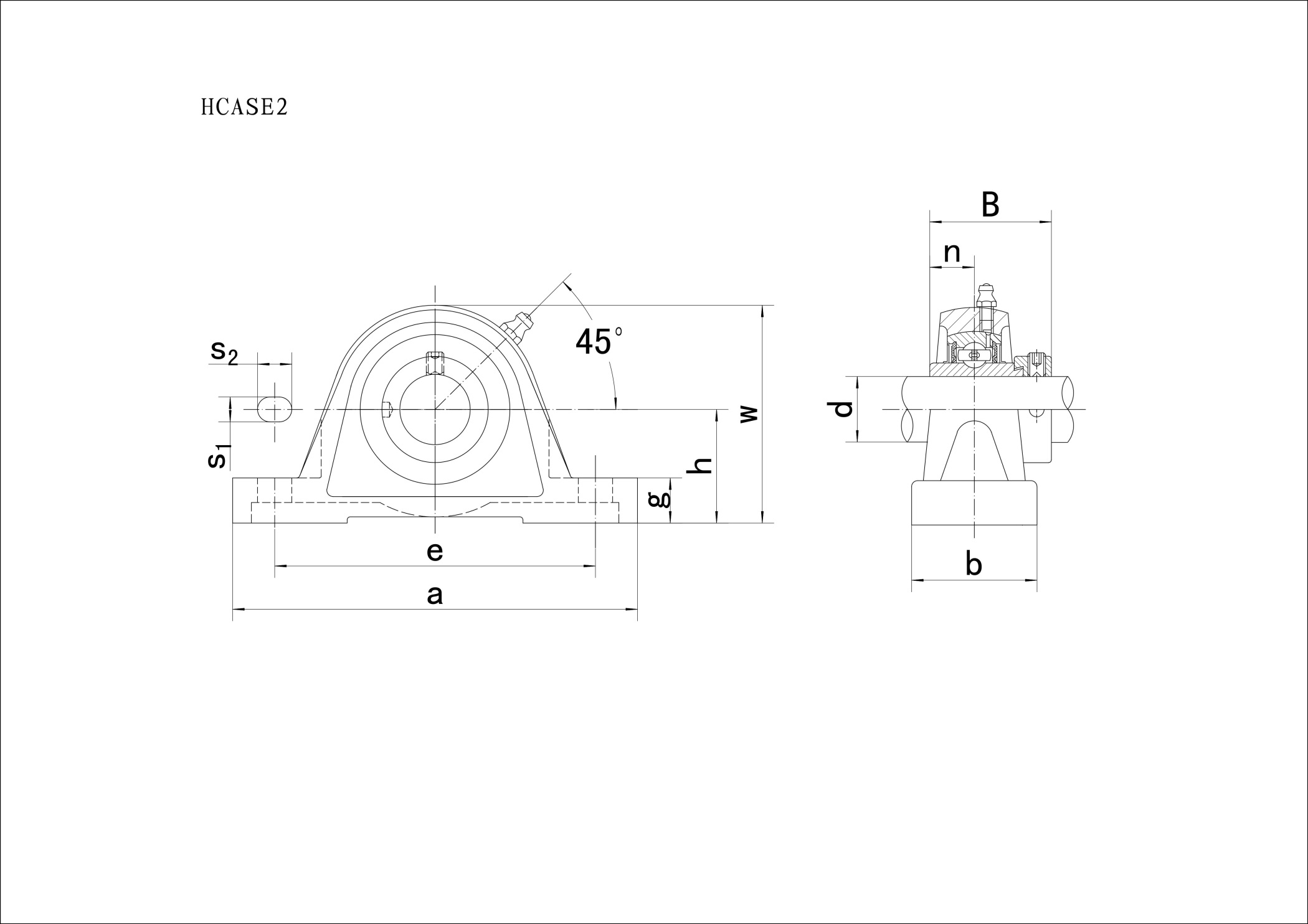

Unit NO.Dimensions ( mm / in. )Bolt Size mm/in.Bearing No.Housing No.Weight (kg)
dhaebs1s2gwBn
HCASE201 12 33.3 130 97 32 11 19 10 64 43.7 17.1 3/8 HC201RG ASE201 0.64
HCASE202 15 33.3 130 97 32 11 19 10 64 1.72 0.673 3/8 HC202RG ASE202 0.64
HCASE203 17 33.3 130 97 32 11 19 10 64 1.72 0.673 3/8 HC203RG ASE203 0.64
HCASE204 20 33.3 130 97 32 11 19 10 64 1.72 0.673 3/8 HC204RG ASE204 0.64
HCASE205 25 36.5 130 103 36 11 19 14.5 70 44.4 17.5 3/8 HC205RG ASE205 0.75
HCASE206 30 42.9 158 118 40 14 22 17 82 48.4 18.3 7/16 HC206RG ASE206 1.13
HCASE207 35 47.6 163 126 45 14 21 19 93 51.1 18.8 7/16 HC207RG ASE207 1.57
HCASE208 40 49.2 179 138 48 14 26 19 99 56.3 21.4 7/16 HC208RG ASE208 1.93
HCASE209 45 54 192 150 48 14 29 21.5 107 56.3 21.4 7/16 HC209RG ASE209 2.22
HCASE210 50 57.2 200 158 54 18 23 21.5 115 62.7 24.6 5/8 HC210RG ASE210 2.82
HCASE211 55 63.5 222 176 60 18 30 22.5 124.5 71.4 27.8 5/8 HC211RG ASE211 3.51
HCASE212 60 69.9 240 190 60 18 28 25 140 77.8 31 5/8 HC212RG ASE212 4.64
HCASE213 65 76.2 257 200 64 25 35 27 150 85.7 34.1 7/8 HC213RG ASE213 5.6
HCASE214 70 79.4 260 203 65 22 28 27.5 156 85.7 34.1 3/4 HC214RG ASE214 6.05
HCASE215 75 82.5 265 210 66 22 30 27.5 164 92.1 37.3 3/4 HC215RG ASE215 6.77
HCASE216 80 89 290 232 78 26 34 30 175 95.2 37.3 7/8 HC216RG ASE216 8.83
HCASE218 90 101.6 330 268 85 27 35 35 200 72.6 24.5 7/8 HC218RG ASE218 11.75
